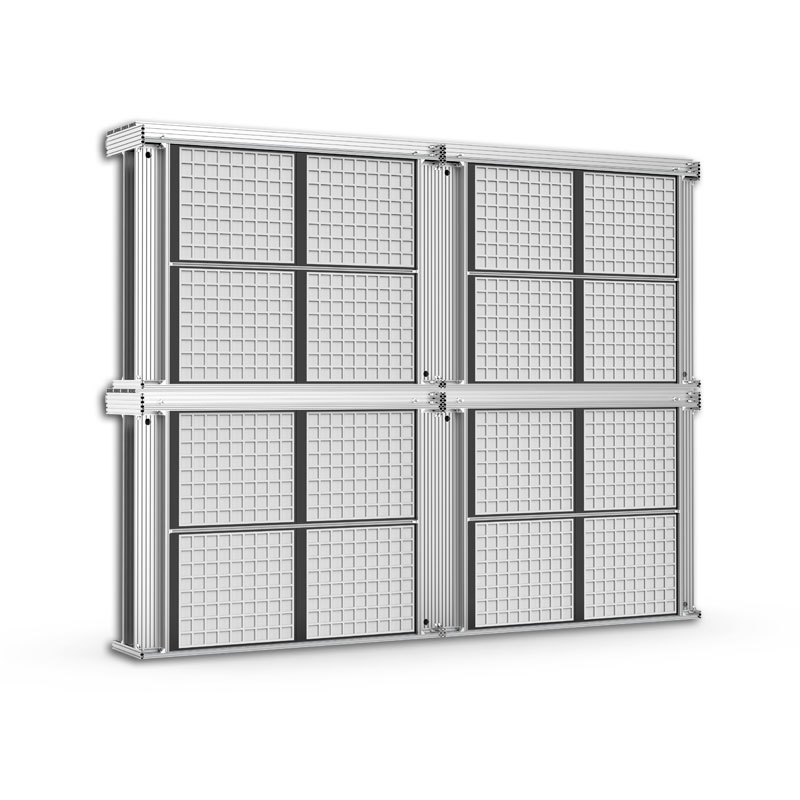

Regenerative Particulate Filter Unit

The renewable particulate matter filtration unit is used in various ventilation and purification systems with high purification efficiency, low running resistance and high efficiency to kill bacteria.

Product introduction

Kaiyue independent research and development of renewable particulate matter filtration unit is a new type of highly efficient self-cleaning automatic purification filtration unit the unit has the advantages of high purification efficiency, renewable continuous use, low running resistance, with the elimination function. The whole filter unit adopts automatic intelligent control, convenient and fast to realize online maintenance and purification, effectively solve the traditional technology purification life is short, easy to fail, frequent maintenance and other problems.

The renewable particulate matter filtration unit adopts online electret purification technology, and relies on the characteristics of online pulse cleaning, automatic intelligent operation, in-situ regeneration and rapid pollution collection of each module to realize the continuous and efficient purification operation of the whole filter unit. The purification and regeneration maintenance functions of the renewable particulate matter filtration unit also realize automation, intelligence and convenient use, bringing a new technical revolution for the whole ventilation and purification industry.

01. Efficient filtration of particulate matter aerosols in the air significantly reduces particulate matter concentration.

02. It can kill bacteria and viruses in the air to reduce the risk of cross infection.

03 Purification unit adopts long life and automatic regeneration technology, no need to manual frequent cleaning or replacement, easy to use, low operation and maintenance cost.

04 Low resistance, high efficiency, permanent use, can be widely used in a variety of ventilation, purification systems.

Kaiqian's self-developed renewable particulate matter filtration unit uses a new on-line automatic in-situ regeneration technology, which solves the problems of the traditional particulate matter filtration technology in the ventilation and purification industry, such as short purification life, non-sustainable effect, easy failure, frequent maintenance and poor adaptability to working conditions. It is especially suitable for purifying particulate matter and microorganism in various ventilation and purification systems with large air volume. The renewable particulate matter filtration unit mainly includes: efficient purification module, intelligent maintenance module, pollution collection module and intelligent control module. Modular design, the whole purification unit adopts modular combination and assembly, easy to install and use quickly.

The renewable particulate matter filtration unit adopts the on-line automatic in-situ regeneration technology with fully independent intellectual property rights. Through the coupling and multiplication of each sub-technology, it can realize the continuous, efficient and safe purification of particulate matter, bacteria and virus.

On-line electret technology

On-line in situ regeneration technique

Intelligent synchronous pollutant capture technology

Intelligent integrated control technology

01. On-line in-situ regeneration

The renewable particulate matter filtration unit has the function of automatic regeneration. Steam is used to effectively clean the on-line electret module in situ. Since the steam and polluted gas run the same path, automatic cleaning of the on-line electret module can be realized when the purification unit is started up, and in-situ regeneration of the whole purification unit can be completely realized.

02. High efficiency, low resistance and low noise

The on-line electret technique exerts a large attractive force on charged particles moving through the air, capable of absorbing almost 100% of the airborne particles while generating only minimal airflow impedance. The purification efficiency of 0.3 micron particulate aerosol reaches 99%, and the operation resistance is small, typical value of 10~50Pa, low impedance, low noise during operation.

03. It can kill

On-line electret technology is adopted. Due to the existence of charged body, it has high efficient sterilization and disinfection performance and strong elimination function in operation.

04 Continuous and efficient purification, long use

The automatic cleaning mechanism can realize multiple periods of online renewable cleaning, can be used continuously in the process of regeneration, to ensure that the entire purification unit of the online electret module is always in a clean state, and then ensure that the purification efficiency of the purification unit is always at a high level, to achieve continuous high efficiency of purification.

05 Stable and secure operation

On-line electret technology is safer than traditional high-voltage static electricity because it has no continuous high voltage, hardly produces ozone, and does not spark.

06 Intelligent maintenance is convenient

Purification and collection module adopts automatic control and operation of intelligent equipment, purification and collection in one, easy to use and maintenance, operation and maintenance cost is low. Because the cleaning unit does not need manual internal cleaning and maintenance, only the dust collecting container needs to be cleaned regularly.

07. Modularization of purification unit

The separation modular design of purification module, regeneration module and collection module is not only convenient for equipment maintenance, but also convenient for customized production. It can be customized according to the actual needs of users. At the same time, it can also be modular installation, convenient for on-site installation and later use and maintenance.

08 Integrated control integration

Using PLC intelligent control, support a variety of control protocols, operation and regeneration process can realize intelligent control, the whole process without manual intervention, simple use and maintenance, support automatic/manual operation.

09 Economy, strong applicability

The input energy of the renewable particle filter unit can be ignored, and the resistance is small. The existing fan does not need to be replaced and the operation noise is low.

01. Air duct form filter device

According to the specifications of the air duct, the independent filter device is made by modular assembly of renewable particulate matter filtration unit, which can not only purify the outdoor air, but also protect the air conditioner surface cooler.

02. Cabinet filter device

The renewable particulate matter filter unit is modular assembled into a cabinet filter device, which can effectively purify the air, especially the particulate matter brought by the return air and circulating wind.

03 Filter unit in the form of combined air conditioning box

For the form of air conditioning with all-air treatment system, the air conditioning filter section is made of renewable particulate matter filtration unit, which can not only purify the outdoor air, but also protect the air conditioner surface cooler.

04. Ceiling type air purification unit

The renewable particulate matter filtration unit is modularized into a ceiling type air purification unit. Through the ceiling installation, it can be used as an independent internal circulation purification unit or connected to pipelines to purify particles from fresh air and exhaust air, etc., with flexible use.

01 subway station

It is suitable for air purification in subway station, especially for air purification in piston air and fresh air shaft in subway station. The renewable particulate matter filtration unit is used for daily uninterrupted operation and purification in the station space, without special maintenance, so as to create a clean and healthy air environment.

02 Air conditioning system particulate matter purification

It is suitable for ventilation and air conditioning systems of various office areas with large flow and high population density, schools, waiting/car rooms, fitness places/gymnasiums, hospitals, such as air conditioning systems and fresh air units. Due to large flow of people, complex personnel composition, high air pollution, serious harm to human body. After application, it can effectively purify PM2.5 with sterilization and disinfection function.

03 Livestock farms

It is suitable for multiple purification treatment in animal husbandry farms through internal circulation to achieve multi-level and three-dimensional deep air purification, improve the air quality and epidemic prevention level in animal husbandry farms. The main treatment objects are: bacteria, fungi, viruses and other pathogens; Optional configuration of odor removal device, effective purification of odor gases such as ammonia, hydrogen sulfide and methyl mercaptan.

04 Hospital outpatient hall

It is suitable for crowded places such as outpatient halls of medical and health systems at all levels and places in the hospital that need to be purified. Through custom-made cabinet type or ceiling type equipment, indoor particulate aerosol can be recycled to purify, and bacteria, viruses and other microorganisms can be killed, effectively reducing the risk of indoor cross infection.

Industrial workshop particulate matter purification

Suitable for all kinds of industrial workshops in the purification system, instead of fiber filter, for particulate matter and attached to the particles of bacteria, viruses and other continuous purification, to ensure that the workshop air continuous clean.

Clean workshop and data room

It is suitable for replacing the coarse and medium effect filter in the clean workshop purification system and the fiber filter in the data center machine room. With its large dust collection and renewable cleaning characteristics, the indoor particulate aerosol can be continuously and efficiently cleaned, and the continuous maintenance and regeneration of the filter unit can be realized to meet the needs of long-term maintenance free.
